latest update from today
So factory pontoon parts are not really made for electronics, I bought electronics before a boat

so what to do with the stuff
It sits at a marina and when the electronics double the value of the boat...the tweakers and meth heads come down out of the hollars and feed...their addiction buy; stealing good hard working peoples shit
So I did some measuring and sat in boat in the back yard making vroom vroom noises and pushing fake buttons
My plan:
I can build her box

. I have the technology. I can make her better than she is. Better, stronger, faster.
so I cut some alum out and mocked up what needed to be cut and rounded and bent (no way to weld alum. at home yet...so I made an erector set)

- 2018-05-28 15.11.01.jpg (153.17 KiB) Viewed 41030 times

- 2018-05-28 15.10.25.jpg (129.33 KiB) Viewed 41030 times
painting

- 2018-05-28 15.08.50.jpg (217.39 KiB) Viewed 41030 times
start to assemble

- 2018-05-28 15.09.28.jpg (148.06 KiB) Viewed 41030 times
I used 2" long 10-32 SHCS to bolt sides to bottom and to be used as locators (need to swap for SS bolts)
wires tied up and secured with quick disconnect plugs

- 2018-05-31 18.57.31.jpg (162.69 KiB) Viewed 41030 times
Here it is looking like an old skool tool box, I used 2 pc of 1/4-20 all thread thru a pc of 2.0 x 1.0 x 1/8 wall x 24 inch long rectangular tubing for the handle/roll bar

- 2018-05-30 20.01.57.jpg (167.1 KiB) Viewed 41029 times

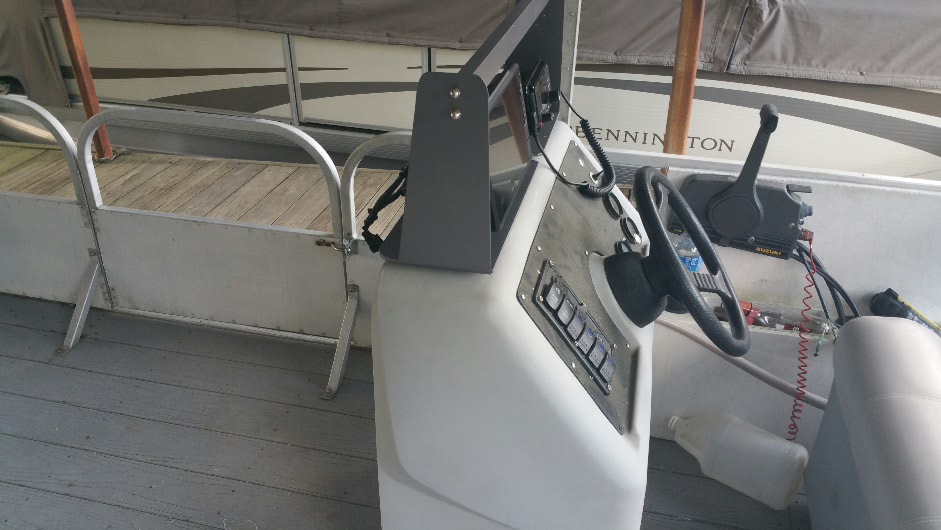

and sitting on console, I drilled 6 holes in the top for the bolts and 1 center hole for cords wires and the Quick disconnects are shoved in the cubby hole in a zip lock bag with an old kooz as camoflauge

- 2018-05-31 18.54.56.jpg (138.29 KiB) Viewed 41030 times

- 2018-05-31 18.55.19.jpg (112.81 KiB) Viewed 41030 times
everything looks crooked for some reason

- 2018-05-31 18.55.48.jpg (121.38 KiB) Viewed 41030 times
it is not heavy, still need a couple latches to secure it, and finish the back cover and sun screen
hope it gives folks an idea or two
I do plan on a new double console setup with walk thru for next winter
